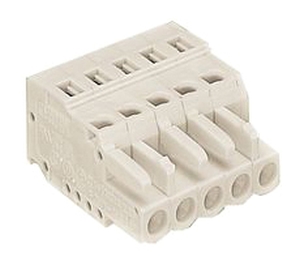

Terminal Connector Plug Female 16A 630V 5-Pos.

Description

Terminal Connector Plugs: Type - Terminal Connector Plug; Contact Gender - Female; Connector Configuration - 5-Pole; Number of Positions - 5-Pos.; Pitch - spacing - 5.00 mm; Voltage - nominal - 630V; Current - nominal - 16A; Wire Size - 28-12 AWG; Wire Connection Type - Cage Clamp; Size - Width - 26.50 mm; Size - Height - 14.30 mm; Size - Depth - 26.45 mm; Temperature Rating - -60 to 85 deg C; Material - Tin Plated Copper Alloy; Color - Light Gray; Package Quantity - 100; Additional Information - Insulating Material: Polyamide 66, Clamping Spring Material: Chrome-Nickel Spring Steel; Manufacturer Series - 721

Additional Info: Insulating Material: Polyamide 66, Clamping Spring Material: Chrome-Nickel Spring Steel
