PHOENIX CONTACT
#1805301

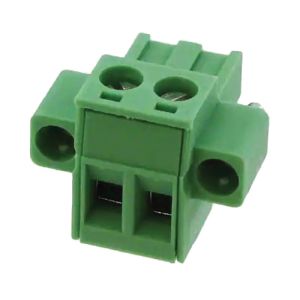

PCB Connector Plug, Female, 2, 250 V Nominal, 12 A Nominal
SKU
#
78037397323
Specifications
Type:
PCB Connector Plug
Contact Gender:
Female
Connector Configuration:
1 Level
Number of Positions:
2
Pitch - spacing:
5.08mm
Voltage - Nominal:
250V
Current - nominal:
12 A
Wiring Angle:
0°
Wire Size:
24 to 12 AWG
Wire Connection Type:
Screw with Tension Sleeve
Width:
19.96mm
Height:
15mm
Depth:
18.2mm
Temperature Rating:
-40° to +100°C
Material:
Polyamide
Color:
RAL 6021 Pale Green
Package Quantity:
50
