3M
#MN8-38RX

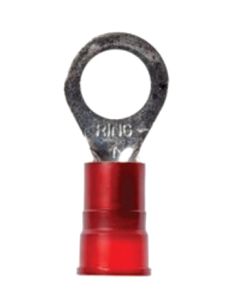

Scotchlok™ Terminal, Ring; Insulated; 600V; 3/8 in.; 8 AWG
SKU
#
05112858639
Specifications
Country of Origin:
United States of America - Subject to change
Terminal Type:
Ring Tongue
Insulation:
Nylon
Stud Size:
3/8 in.
Conductor Max:
8 AWG
Color:
Red
Temperature Rating:
221°F (105°C)
Voltage Rating:
600V
Package Quantity:
100/Case
Description
Ring Lugs: Terminal Type - Ring Tongue; Insulation - Nylon; Stud Size - 3/8 in.; Conductor Max - 8 AWG; Color - Red; Temperature Rating - 105 deg C (221 deg F); Voltage Rating - 600V; Package Quantity - 100/Case; Additional Information - Barrel I.D.: 0.17
Additional Info: Barrel I.D.: 0.175 in., Tongue Thickness: 0.050 in., Maximum Insulated Diameter: 0.340 in., Barrel Style?:? Brazed, Size: 1.38 in. L x 0.59 in. W
