TE CONNECTIVITY
#MWTM-140/42-1200-S(B5)

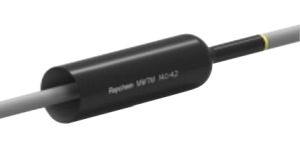

Heat Shrink Tubing, 5.51 in. Expanded, 1.65 in. Recovered, Black
SKU
#
04568600658
Manufacturer Series:
MWTM
Specifications
Country of Origin:
Germany - Subject to change
Tubing Type:
Heat Shrink Tubing
Voltage:
600V
Wall Type:
Medium Wall
Material:
Cross-Linked Polyolefin
Shrink Ratio:
3 to 1
I.D. Expanded:
5.51 in. (140.0 mm)
I.D. Recovered:
1.65 in. (42.0 mm)
Color:
Black
Length:
47.24 in.
Description
TE Connectivity's (TE) Raychem sealant-coated MWTM tubing (-S designation) can be used as an insulation jacket repair up to 600V. The MWTM tubing can also be used for general sealing and rejacketing of polymeric or elastomeric insulated cables up to 35kV. TE's MWTM tubing has a 3:1 shrink ratio and an unlimited shelf life when stored under normal conditions.
Additional Info: Inline Coating, Flexibility: Semi-Rigid, Non-Flame-Retardant, Resistance Against: Mechanical Impact or Damage
