3M
#BBI-6A-RED-50FT-ROLL
Busbar Tubing, -67° to +230°F, 1.5:1 Shrink, 50 ft. L
SKU
#
05113535733
Manufacturer Series:
BBI-A
Specifications
Country of Origin:
United States - Subject to change
Tubing Type:
Heat Shrink Bus Bar Insulation
Voltage:
5 kV, 8 kV, 15 kV, 25 kV
Temperature Rating:
-67° to +230°F
Shrink Ratio:
1.5 to 1
Circumference - Min:
7.57 in.
Circumference - Max:
12.86 in.
Color:
Red
Length:
50 ft.
Description

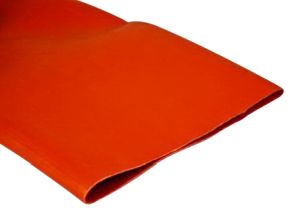

3M™ bus bar heat shrink tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars.
