PHOENIX CONTACT
#2744241

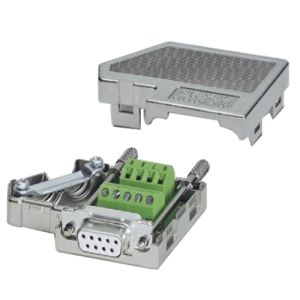

D-SUB Connector, 9 Positions, 26 to 16 AWG, Female
SKU
#
78037386648
Specifications
Type:
D-SUB Connector
Number of Positions:
9
Contact Gender:
Female
Shell Size - No.:
1(E)
Dimensions:
LxWxH: 60 x 16 x 44mm
Rating - Electrical:
50 VDC, 100 mA
Wire Range:
26 to 16 AWG
Shell Type - Material:
Metal Plated ABS
Contact Type:
Screw
Mounting:
Cable
Description
Two cable infeeds are often required on the D-SUB plugs used in order to build fieldbus systems with RS485 interfaces. The SUBCON-PLUS plugs range fulfills this requirement and routes the connection to screw terminal blocks however, duplicated for two cables. This means clarity during wiring and it simplifies every startup. These plugs are of course also shielded against EMC influences with a metallized housing. In addition, by placing the connection block in either the upper or lower shell, it is possible to select the cable infeed on-site from the right or left.
