KEYSTONE
#11311

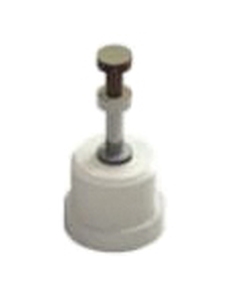

Terminal; Turret; Single Ended; 0.210 in. Height x 0.080 in. Diameter Turret; 0.136 in. x 0.100 in. Mount; Through Hole; 0.062 in. Thickness Board; Tin Plated Brass; Installation: Press-Fit
SKU
#
78382495706
Specifications
Type:
Insulated PCB Double Turret Terminal, Single Ended
Turret Height:
0.21 in. (5.3mm)
Turret Diameter:
0.080 in. (2.00 mm)
Mounting Type:
Through Hole
Mounting Length:
0.100 in. (2.50 mm)
Mounting Diameter:
0.136 in. (3.50 mm)
Board Thickness:
0.062 in. (1.57 mm)
Material:
Tin-plated Brass
Installation:
Press-Fit
