KEYSTONE
#11111

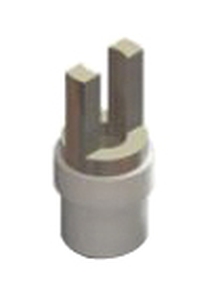

Terminal; Turret; Single Ended; 0.203 in. Height x 0.148 in. Diameter Turret; 0.158 in. x 0.150 in. Mount; Through Hole; 0.062 in. Thickness Board; Tin Plated Brass; Installation: Press-Fit
SKU
#
78382495737
Specifications
Type:
Insulated PCB Single Fork Turret Terminal, Single Ended
Turret Height:
0.203 in. (5.16mm)
Turret Diameter:
0.148 in. (3.80 mm)
Mounting Type:
Through Hole
Mounting Length:
0.150 in. (3.80 mm)
Mounting Diameter:
0.158 in. (4.00 mm)
Board Thickness:
0.062 in. (1.57 mm)
Material:
Tin-plated Brass
Installation:
Press-Fit
