KEYSTONE
#11002-B

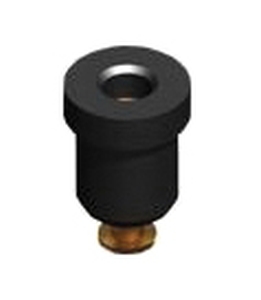

Jack; PCB Test; Insulated; 0.055 in. Terminal Gold Plated Beryllium Copper Contact; Black; PTFE Base; -60 to 500 deg F; 0.142 in.
SKU
#
78382495794
Specifications
Type:
Insulated PCB Test Jack
Contact Type:
Spring
Terminal Size:
0.055 in. (1.40 mm) Dia. x 0.120 in. (3.05 mm) H
Base Material:
PTFE
Color Code:
Black
Contact Material Type:
Gold Plated Beryllium Copper
Dimensions Overall:
0.142 in. (3.61 mm) Dia. X 0.449 in. (11.40 mm) H
Temperature Rating:
-60 to 500 deg F
