TE CONNECTIVITY
#HVSY-1522S

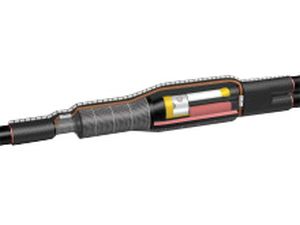

Raychem™ Wye Tap Splice, Single Conductor, 15 kV, 2 AWG to 4/0 AWG
SKU
#
04568600222
Manufacturer Series:
HVSY
Specifications
Country of Origin:
Belgium - Subject to change
Type:
Wye Tap Splice
Cable Configuration:
Single Conductor
Cable Type:
Copper Tape/Wire Shield/Lead Sheath and UniShield Cable
Voltage:
15kV
Insulating Material:
Heat Shrink Plastic
Connector - included:
Soldered Connector
Conductor Min:
2 AWG
Conductor Max:
4/0 AWG
Insulation Outside Diameter:
0.65 to 1.05 in.
Application Rating:
Branch
Description
TE Connectivity's (TE) Raychem® HVSY-1520S series tap splices are for use on copper tape, wire shield, lead sheath, and UniShield cables. HVSY-1580D series is for use as a wye splice where the main and/or tap cables may be paper-insulated, lead-covered (P
