NSI INDUSTRIES
#0T

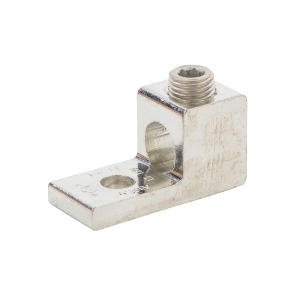

Mechanical Terminal, Electro Tin Plated Aluminum, 1/4 in. inch, CU/AL
SKU
#
66238100103
Manufacturer Series:
T
Specifications
Country of Origin:
United States - Subject to change
Type:
Mechanical Terminal
Material:
Electro Tin-plated Aluminum
Conductor Type:
CU/AL
Conductor Count:
1
Stud Holes:
1
Screw/Stud Size:
1/4 in.
AWG Min:
14
AWG Max:
6
Description
Terminal Lugs: Type - Mechanical Terminal; Material - Electro Tin Plated Aluminum; Conductor Type - CU/AL; Conductor Count - 1; Stud Holes - 1; Screw/Stud Size - 1/4 in.; AWG Min - 14; AWG Max - 6; Additional Information - 600V, Dual Rated, Single Lug, Torque: 120 in./lb, Temperature Rating: 90 deg C, Dimension: 1.47 in. L x 0.63 in. W; Manufacturer Series - T
Additional Info: 600V, Dual Rated, Single Lug, Torque: 120 in./lb, Temperature Rating: 90 deg C, Dimension: 1.47 in. L x 0.63 in. W
