3M
#20005

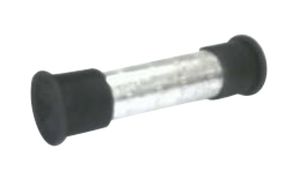

Splice, Compression; Aluminum; 1/0 AWG; Tan; 2.12 in.
SKU
#
05400713277
Manufacturer Series:
20000
Specifications
Country of Origin:
United States of America - Subject to change
Type:
Compression Splice
Material:
Aluminum
Voltage:
35kV
Barrel Length/Type:
Standard
Length:
2.12 in.
Conductor Type:
CU/AL Cable
Conductor Size - AWG MCM:
1/0 AWG
Color Code:
Tan
Description
3M scotchlok copper/aluminum compression Connectors, 20000 Series are made of high conductivity aluminum and are designed to cover a wide range of conductor sizes from 6 AWG through 1000 kcmil (MCM). They are designed to connect either aluminum and/or copper conductors. Each connector is electro-tin plated to resist electrolytic corrosion. They are installed using standard industry tooling. Chamfered ends, and an integral solid center barrier, ensure simplicity and ease of conductor insertion.
Additional Info: Inside Diameter?: 0.39 in., Outside Diameter?: 0.63 in.
