PANDUIT
#LCAX1/0-12H-X

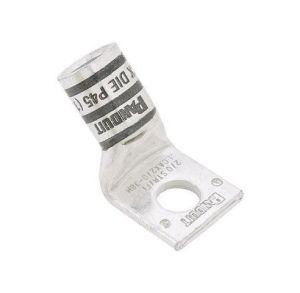

Lug, Ring; 45 deg. Barrel; Non-insulated; 1/0 AWG Flex; 1/2 in.
SKU
#
07498343531
Manufacturer Series:
LCAX-H
Specifications
Screw/Stud Size:
1/2 in.
Conductor Size - Flex:
1/0 AWG Flex
Country of Origin:
Mexico - Subject to change
Lug L x Tongue W:
1.89 x 0.85 in.
Conductor Size - Code:
1/0 AWG
Color Code:
Pink
Type:
Compression Terminal
Insulation:
Non-insulated
Material:
Copper, Tin-plated
Voltage:
35kV
Barrel Length/Type:
Standard / 45 Degree
Stud Holes:
1
Conductor Type:
Copper
Inspection Hole:
Yes
