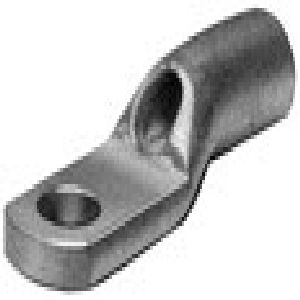

Wiring Connectors Connectors and Lugs, Compression Cable Lugs HYLUG™ Terminal, Ring; CU; Tin-plated; Non-Insulated #YAV10L36
BURNDY #YAV10L36

HYLUG™ Terminal, Ring; Non-insulated; 14 to 10 AWG STR, 12 to 10 AWG SOL; No. 8 to 10

SKU # 78181002516 Manufacturer Series: YAV
RoHS Compliant
Please enter a valid quantity
Unit of Sale: EA Order in multiples of: 1
Unable to add item(s) to cart. Please try again.
View more versions of this product

Specifications

Conductor Size - Code: 14 to 10 AWG STR, 12 to 10 AWG SOL
Screw/​Stud Size: No. 8 to 10
Country of Origin: United States - Subject to change
Type: Ring Compression Terminal
Insulation: Non-insulated
Material: Copper, Tin-plated
Voltage: 35kV
Barrel Length/​Type: Standard / Straight
Stud Holes: 1
Conductor Type: Copper
Inspection Hole: Yes
