BURNDY
#YAV1CRS2

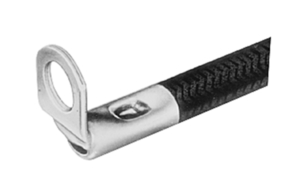

HYLUG™ Lug, Compression; Copper, Tin-plated; 90 deg.; 1 Hole; 1 AWG; 5/16 in.
SKU
#
78181002551
Manufacturer Series:
YAV-L
Specifications
Conductor Size - Code:
1 AWG
Screw/Stud Size:
5/16 in.
Country of Origin:
United States - Subject to change
Conductor Size - Flex:
AN 1 Flex
Type:
Compression Terminal
Insulation:
Non-insulated
Material:
Copper, Tin-plated
Barrel Length/Type:
Standard / 90 Degree
Stud Holes:
1
Conductor Type:
Copper
Inspection Hole:
Yes
Description
Additional Info: Listed for use with Copper Aircraft Cable.
