SIEMENS
#6XV18782B

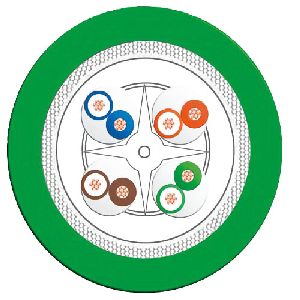

Cable GP, 24 AWG, Tinned copper Conductor, 4-Pair Conductor, 100V, 0.020 in. OD x 1000-ft L
SKU
#
04089255261
Specifications
Country of Origin:
Germany - Subject to change
Type:
Communication and Control Cable
Conductor Count:
4 Pair
Conductor Size:
24 AWG
Conductor Material:
Tinned Copper
Voltage:
100V
Jacket Material:
PVC
Jacket Color:
Green
Insulation:
PE
Rating:
CMG
Nominal OD:
0.020 in. (0.51mm)
Temperature Rating:
80°C
Length:
1000 ft. (305m)
Shielded:
STP
Shield Type:
Overall Foil Shield
Shield Material:
Aluminum-Clad
Approval Listings:
c(UL)us
Description
Paired-Conductor Cable, Shielded: Type - Communication and Control Cable; Conductor Count - 4-Pair; Conductor Size - 24 AWG; Shield Type - Overall Foil Shield; Shield Material - Aluminum-Clad; Conductor Material - Tinned Copper; Voltage - 100V; Jacket Material - PVC; Jacket Color - Green; Insulation - PE; Rating - CMG; Nominal OD - 0.020 in. (0.51mm); Temperature Rating - 80 deg C; Length - feet - 1000-ft; Length - meters - 305m; Approval Listings - c(UL)us
