GENERAL CABLE
#C6040A.18.10

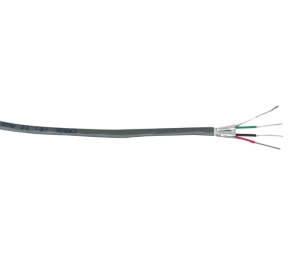

Computer Cable, 3-Pair, 22 AWG, Str Tinned Cu, 300V, 0.292 in. OD, 500-ft L, CM Rating
SKU
#
07940705055
Specifications
Country of Origin:
United States of America - Subject to change
Type:
Computer Cable
Conductor Count:
3 Pair
Conductor Size:
22 AWG
Conductor Material:
Stranded Tinned Copper
Voltage:
300V
Jacket Material:
PVC
Jacket Color:
Gray
Insulation:
PVC
Rating:
CM
Conductor Strands:
7 x 30
Nominal OD:
0.292 in. (7.42mm)
Temperature Rating:
80°C
Length:
500 ft. (152m)
Shielded:
STP
Shield Type:
Foil Shield
Shield Material:
Alum-Polyester 100 Percent
Approval Listings:
NEC Article 800 Type CM (UL: 75 deg C), UL Style 2919 (UL: 80 deg C, 30V), CSA CMH (CSA: 60 deg C)
Description
Paired-Conductor Cable, Shielded: Type - Computer Cable; Conductor Count - 3-Pair; Conductor Size - 22 AWG; Shield Type - Foil Shield; Shield Material - Alum-Polyester 100 Percent; Conductor Material - Str Tinned Cu; Voltage - 300V; Jacket Material - PVC; Jacket Color - Gray; Insulation - PVC; Rating - CM; Conductor Strands - 7 x 30; Nominal OD - 0.292 in. (7.42mm); Temperature Rating - 80 deg C; Length - feet - 500-ft; Length - meters - 152m; Approval Listings - NEC Article 800 Type CM (UL: 75 deg C), UL Style 2919 (UL: 80 deg C, 30V), CSA CMH (CSA: 60 deg C)
