MANHATTAN/CDT
#M4700-SL001

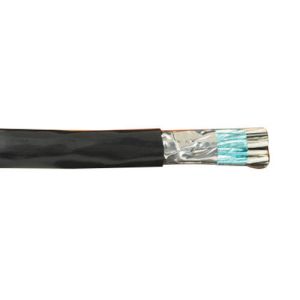

Alpha Essentials Multi-Conductor Cable, 300 Vrms, 18 AWG, 0.44 in. OD
SKU
#
78914360724
Specifications
Type:
Computer, Communication and Control Cable
Conductor Type:
Stranded
Conductor Count:
15
Conductor Size:
18 AWG
Conductor Material:
Tinned Copper
Voltage:
300 Vrms
Jacket Material:
PVC
Jacket Color:
Slate
Insulation:
PVC
Jacket Rating:
CMG, FT4
Conductor Stranding:
16x30 Str
Nominal OD:
0.44 in.
Length:
1000 ft.
Shielded:
STP
Shield Type:
Foil, Tape
Shield Material:
25% Overlap Aluminum/Mylar Tape
Package:
Spool
Approval Listings:
UL-AWM/STYLE 2464, CMG, cUL-CMG, CSA Certified, FT4, CE-Marked
Description
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options and conductor counts, you can easily select the cable th
