ALPHA WIRE
#M1704-SL005

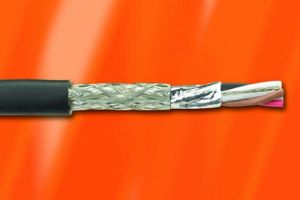

Cable, Tray; 4C; 1000V; Slate
SKU
#
78119738236
Specifications
Type:
Tray Cable
Conductor Count:
4C
Conductor Size:
18 AWG
Conductor Material:
Stranded Tinned Copper
Voltage:
1000V
Jacket Material:
PVC
Jacket Color:
Slate
Insulation:
PVC
Conductor Stranding:
19 x 30
Nominal OD:
0.269 in. (6.83 mm)
Temperature Rating:
-55 to 105 Degree C
Length:
100 ft. (30.5m)
Shielded:
STP
Shield Type:
Braid
Shield Material:
Tinned-Cu 90 Percent
Approval Listings:
UL Type VW-1, MIL-W-16878/Type C
Description
Additional Info: Jacket Thickness: 0.023 in. (0.58mm)
