ALPHA WIRE
#5092C-SL002

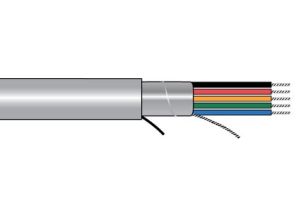

Xtra-Guard Cable, Communication/Control; Stranded Tinned Copper; 24 AWG; 2C
SKU
#
78119791300
Specifications
Type:
Communication and Control Cable
Conductor Count:
2C
Conductor Size:
24 AWG
Conductor Material:
Stranded Tinned Copper
Voltage:
300V
Jacket Material:
PVC
Jacket Color:
Slate
Insulation:
PVC
Jacket Rating:
CM
Conductor Stranding:
7 x 32
Nominal OD:
0.160 in. (4.06mm)
Temperature Rating:
-30 to 105 Degree C
Length:
500 ft. (152m)
Shielded:
STP
Shield Type:
Foil
Shield Material:
Alum Foil-Polyester 25 Percent
Approval Listings:
UL Type CM AWM 2464 VW-1, CSA CMG FT4
Description
Additional Info: Jacket Thickness: 0.032 in. (0.81mm)
