BELDEN
#83007-0051000

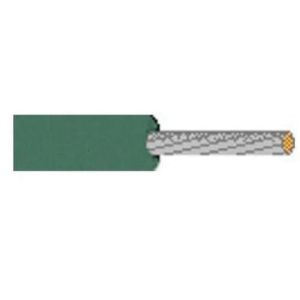

Lead/Hook-up Wire, 20 AWG, 19x32 Str, 600 Vrms, TFE, 304.8m
SKU
#
49100089157
Manufacturer Series:
83007
Specifications
Type:
Lead/Hook-up Wire
Conductor Size:
20 AWG
Conductor Material:
Silver-Plated Copper
Conductor Stranding:
19x32 Str
Voltage:
600 Vrms
Color:
Dark Green
Insulation Material:
TFE
Insulation Thickness:
0.01 in.
Temperature Rating:
-70° to +200°C
Amps - Nominal:
6.5 A
Nominal OD:
0.06 in.
Package Length - feet:
1000 ft.
Package Length - meters:
304.8m
Package Type:
Spool
Approval Listings:
UL-VW-1, AWM Style 1213, CE-Marked, NEMA HP3, MIL-W-16878/4, Type E, WEEE Compliant
