BELDEN
#83009-0081000

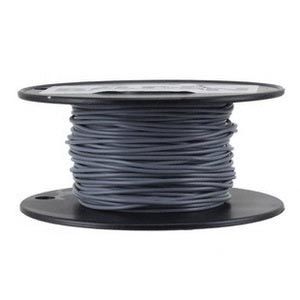

Lead/Hook-up Wire, 18 AWG, 19x30 Str, 600 Vrms, TFE, Gray
SKU
#
49100089120
Manufacturer Series:
83009
Specifications
Type:
Lead/Hook-up Wire
Conductor Size:
18 AWG
Conductor Material:
Silver-Plated Copper
Conductor Stranding:
19x30 Str
Voltage:
600 Vrms
Color:
Gray
Insulation Material:
TFE
Insulation Thickness:
0.01 in.
Temperature Rating:
-70° to +200°C
Amps - Nominal:
9.2 A
Nominal OD:
0.07 in.
Package Length - feet:
1000 ft.
Package Length - meters:
304.8m
Package Type:
Reel
Approval Listings:
UL-VW-1, AWM Style 1371, CE-Marked, NEMA HP3, MIL-W-16878/4, Type E, WEEE Compliant
