PEPPERL+FUCHS
#EFC-4-SS

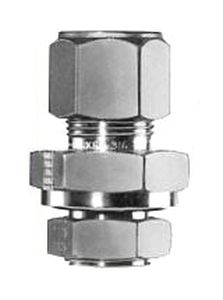

Enclosure Flush Connector, 1/4 in. Tube
SKU
#
78884892711
Specifications
Type:
Enclosure Flush Connector
End A - Size:
1/4 in.
End B - Size:
1/4 in.
End A - Type:
Tube
End B - Type:
Tube
Material:
Bright Annealed 316 Stainless Steel
Description
Model EFC enclosure flush connector fittings provide a standard tubing connection on the protected enclosure(s). Because these fittings feature a neoprene O ring and short body, they form an exceptional seal, requiring the smallest possible amount of interior clearance. They are intended for the tubing supply connection on the first enclosure of any installation, and are compatible with all systems, except Models 1005 and 2005. In addition, Model EFC-4 fittings provide the enclosure pressure reference connection on any enclosure for any Pepperl+Fuchs enclosure protection system, because all Pepperl+Fuchs systems feature a 1/4 in. tube fitting on the enclosure pressure reference port.
