MEGGER
#1004-919

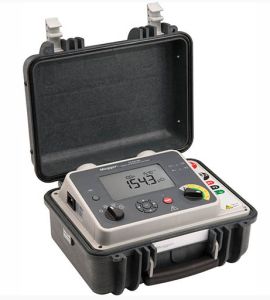

Digital Low Resistance Ohmmeter, 600V, 100A
SKU
#
40309190384
Specifications
Meter Type:
Digital Low Resistance Ohmmeter
Application:
Utilities and Service Contractors, OEM Manufacturers, Transport Manufacturers and Maintenance
Measures:
0.1 micro ohms - 1.999 Ohms
Voltage:
CAT IV 600V AC
Current AC:
100A
Ground Resistance, Ohms:
50 - 110A - 0 - 100.00 mΩ, 11-49A - 10 - 100.00 mΩ, 10A 10 - 1000.0 mΩ
Parts Included:
Line-powered Lead, USB Cable, User Guide CD, Test and Calibration Certificates, Quick Start Guide
Display:
Digital
Description
Ohmmeter, Digital Low Resistance; Measures: 0.1 microohms - 1.999 Ohms; Voltage AC: CAT IV 600VAC; Current AC: 100A; Ground Resistance: 50 - 110A - 0 - 100.00 mΩ, 11-49A - 10 - 100.00 mΩ, 10A 10 - 1000.0 mΩ50 - 110A - 0 - 100.00 mΩ, 11-49A - 10 - 100.00 mΩ, 10A 10 - 1000.0 mΩ; Display: Digital
