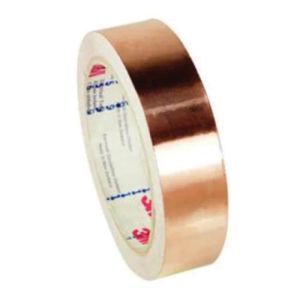

Shielding Tape, 6 yd. L x 1/4 in. W x 2.6 mil T, Copper

Description

3M™ Copper foil shielding tape 1181 has a 1.4 mil smooth copper foil backing with a conductive acrylic pressure sensitive adhesive and liner. The unplated copper with conductive adhesive is a common EMI shielding tape for non-corrosive conditions. The 1181 tape has common EMI shielding 1.4 mil thick copper foil backing. Highly conductive particles in the acrylic adhesive provide a multitude of electrical paths between the application substrate and the surface of the copper foil. Acrylic adhesive has good resistance to heat, oxidation, solvents and oils. The tape is UL-recognized for flame retardancy per UL-510. This tape is designed for a variety of applications point-to-point electrical contact, EMI/RFI shielding, grounding and static charge draining. These tapes can used in both electronic and electrical devices, shielded rooms and EMI test laboratories for prototyping, design and troubleshooting. The 1181 tape is available from 3M™ in log rolls (standard size of 23 in. x 18 yd. or 584mm x 16.5m) to 3M™ slitter/converters. Also, 3M™ offers to 3M™ authorized distributors (and slitter/converters) various size slit rolls for resale to end users. Custom die cut and formed parts are available from 3M™ slitter/converters.
