EMERSON
#01210011N

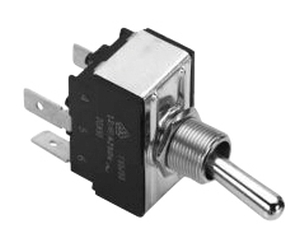

Appleton Switch, Toggle; Bat-Handle; 15A/125V AC; DPDT; On-On
SKU
#
03628300095
Manufacturer Series:
0121
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Bat-Handle Toggle Switch
Circuit Configuration:
DPDT
Circuit Operation:
On-On (maintained)
Amps/125V:
15A/125V AC
Amps/250V:
10A/250V AC
Horsepower:
0.75Hp/250Vac
Voltage:
250V AC
Terminal Type:
Quick-Connect
Terminal Size:
1/4 in.
Toggle Material:
Nickel Plated Brass
Mounting:
1/2 in. OD Hole
Temperature Range:
302°F (150°C)
Description
Additional Info: Base: Phenolic, Bushing: Nickel Plated Brass
