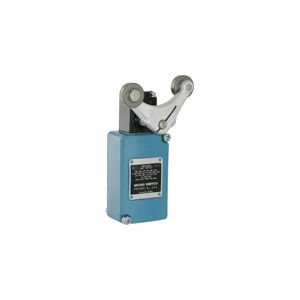

HONEYWELL
#206LS1
Switch, Limit; Plug-In; 10A 480V AC; 3 lb. OF
SKU
#
78454973680
Manufacturer Series:
LS Series
Specifications
Type:
General Purpose Plug-In Limit Switch Body
Rating - NEMA:
NEMA 4, 6
Head/Operator:
Side Rotary Yoke Roller Lever
Operator Configuration:
Fork Type
Head Action:
Spring Return, Standard
Poles/Contacts:
SPDT 1NO 1NC
Current Rating - nominal:
10A
Travel Direction:
CW or CCW
Operating Force:
3 in lb (0.34N.m) OF
Pre-Travel - Travel To Operate:
55 deg PT
Differential-Travel - Travel To Reset:
20 deg DT
Over-Travel/Total-Travel:
35 deg OT
Operating Temperature - min:
-20 deg F (-29 deg C)
Operating Temperature - max:
160 deg F (71 deg C)
Body Construction:
Die Cast Zinc
Electrical Rating - VAC/DC:
10A 480Vac (Vdc Rated)
Receptacle - not included:
18PA1
Enclosure Listings:
NEMA 1,3,4,6,13
Description
Additional Info: Two Steel Rollers, Mounted on Opposite Sides of 1.50"Arms
