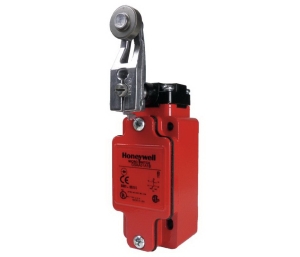

HONEYWELL
#GSAA20A1A
Switch, Limit; Non Plug-in Safety Interlock; DPDT 2NO 2NC
SKU
#
78454990713
Manufacturer Series:
GSA
Specifications
Poles/Contacts:
DPDT 2NO 2NC
Differential-Travel - Travel To Reset:
2.204 in. (55.98mm) DT
Type:
Non Plug-in Safety Interlock Limit Switch
Rating - NEMA:
NEMA 12,13
Head/Operator:
Side Rotary Roller Lever
Head Action:
Snap
Current Rating - nominal:
10A
Operating Force:
2.9 in.-lb (0.32N.m) OF
Pre-Travel - Travel To Operate:
0.787 in. (19.98mm) PT
Over-Travel/Total-Travel:
85°TT
Operating Temperature - min:
-13°F (-25°C)
Operating Temperature - max:
185°F (85°C)
Body Construction:
Die Cast Zinc
Connection Type:
Threaded Entry
Connection Size:
1/2 in. NPT
Electrical Rating - VAC/DC:
10A 600VAC
Description
Additional Info: Style: Side Rotary with Fixed Offset Lever
