CROUZET
#83803051

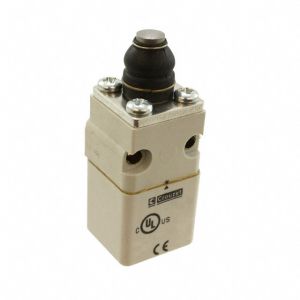

Switch, Limit; Miniature; SPDT 1NO 1NC; 5A
SKU
#
40026398891
Specifications
Type:
Miniature Limit Switch
Rating - NEMA:
NEMA 4
Head/Operator:
Side Rotary Roller Lever
Operator Configuration:
Adjustable
Head Action:
Spring Return, Standard
Poles/Contacts:
SPDT 1NO 1NC
Current Rating - nominal:
5A
Operating Force:
10.0 in-oz (0.07N.m) OF
Pre-Travel - Travel To Operate:
15 deg PT
Differential-Travel - Travel To Reset:
6 deg DT
Over-Travel/Total-Travel:
60 deg TT
Operating Temperature - min:
-4 deg F (-20 deg C)
Operating Temperature - max:
158 deg F (70 deg C)
Body Construction:
Plastic
Electrical Rating - VAC/DC:
5A 250VAC
Description
Compact dimensions, plug-in body, thermoplastic case with IP65 sealing, double-break changeover (form Za) and wide choice of actuators distinguish this limit switch
Additional Info: Double Break, Listings: NEMA 4,12,13
