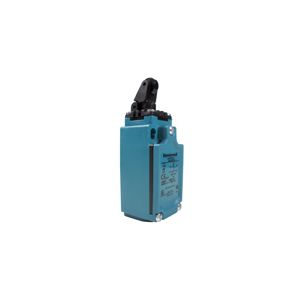

HONEYWELL #GLDC03D

Switch, Limit; Basic; Top Push Roller Lever Head; 10A; 1NO-1NC

SKU # 78454915133 Manufacturer Series: GLS Series

RoHS Compliant

Specifications

Type: Basic Limit Switch

Rating - NEMA: NEMA 4X

Head/Operator: Top Push Roller Lever

Head Action: Spring Return, Standard

Poles/Contacts: 1NO 1NC

Current Rating - nominal: 10A

Operating Force: 2.4 lb (11N) OF

Pre-Travel - Travel To Operate: 0.14 in (3.45mm) PT

Differential-Travel - Travel To Reset: 0.19 in (1.3mm) DT

Over-Travel/Total-Travel: 0.205 in (5.2mm) OT

Operating Temperature - min: -40 deg F (-40 deg C)

Operating Temperature - max: 185 deg F (85 deg C)

Body Construction: Plastic

Connection Type: Threaded Entry

Connection Size: 20mm

Electrical Rating - VAC/DC: 10A 600Vac (Vdc Rated)

Additional Info: NEMA 1, 4X , 12, 13, IP66, IP67, Contact Type BBM, Slow Action
