EATON

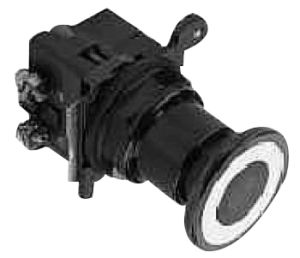

Switch, Illuminated Push-Pull; NEMA 3/3R/4/4X/12/13
(5 Product Options) Manufacturer Series: E34
- Type: Push-Pull Button, Illuminated Switch
- Size: 30.5mm
- NEMA: 3, 3R, 4, 4X, 12, 13
- Operating Cap: Mushroom 40mm
Part #
-
-
Specifications
Type:
Push-Pull Button, Illuminated Switch
Size:
30.5mm
NEMA:
3, 3R, 4, 4X, 12, 13
Operating Cap:
Mushroom 40mm
Bezel/Housing:
Round Metal, Epoxy-coated
Number of Positions:
2
Contact Mode:
Maintained
Contacts:
1-NO 1-NC
Contact Rating:
10A/600V AC
Lamp Power Source:
Transformer
Voltage:
24V AC
Lamp Type:
LED
Terminals:
Ground Screw Terminal
Enclosure Rating:
NEMA 3,3R,4,4X,12,13, IP65
