LINEMASTER
#491-S

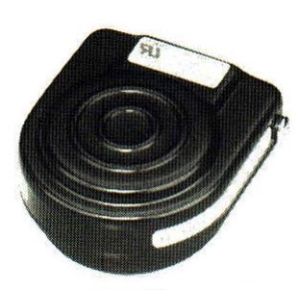

Compact Light Duty Foot Switch Steel, Black
SKU
#
78366722210
Specifications
Type:
Light Duty Foot Switch
Construction Style:
Full Shield
Enclosure Rating:
NEMA 1, IP20
Control Function:
Single Stage
Circuit Configuration:
SPDT
Contact Mode:
Spring Return, Momentary
Rating - Voltage:
125/250V AC
Rating - Current:
10A
Wiring Connection:
Cord
Material:
Steel, Black
Dimensions:
WxLxH: 2.5 x 1.13 x 2.88 in.
Description
Foot Switches, Electrical: Type - Light Duty Foot Switch; Construction Style - Full Shield; Enclosure Rating - NEMA 1, IP20; Control Function - Single Stage; Circuit Configuration - SPDT; Contact Mode - Spring Return, Momentary; Rating - Voltage - 125/250V AC; Rating - Current - 10A; Wiring Connection - Cord; Material - Steel, Black; Size - WxLxH - 2.50 x 1.13 x 2.88 in; Additional Information - 2 Mounting Holes, Non-Skid Base; Manufacturer Series - Compact
Additional Info: 2 Mounting Holes, Non-Skid Base
