PHOENIX CONTACT
#1406147

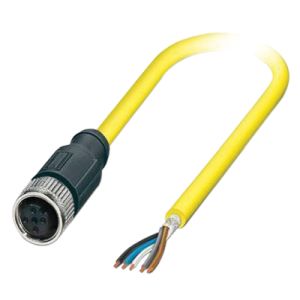

Sensor/Actuator Cable, 48 VAC, 60 VDC, 4 A, Straight, 5 P
SKU
#
78037339955
Specifications
Assembly Type:
Sensor/Actuator Cable
Connector Type:
Female
Keyway:
Single
Angle:
Straight
Cable Length - ft:
32.81 ft.
Cable Length - meters:
10m
Poles:
5
Wire-Pin Code:
A-Coded
Wire-Pin Colors:
1-Brown, 2-White, 3-Blue, 4-Black, 5-Gray
Voltage:
48V AC, 60V DC
Amps:
4A
Connector Material:
TPU Body, CuSn Contact, Nickel Plated Die Cast Zinc Knurls
Cable Type:
Yellow PVC, 22 AWG
Connector Mating Size:
M12x1
Material:
Ni/Au Contact Surface, TPU GF Contact Carrier, NBR Sealing
Application/Rating - IEC:
IEC-IP65, IP67
