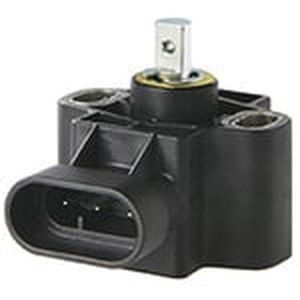

Rotary Position Sensor, Screw, 10 to 30 VDC, IP69K

Description

RTY series with integral actuator, 50° (+/-25°) operating range, 10 to 30 VDC supply voltage, North American pinout style; standard: 0.5 VDC (left), 4.5 VDC (right) non-ratiometric output, shaft without lever. The RTY series hall effect rotary position sensors provide non-contact sensing in harsh transportation and industrial applications at a competitive cost. These shaft activated products are available in two versions: an integral shaft with or without a lever. The lever may allow customers to reduce the number of mechanical linkages required for their applications, which may reduce the cost of the overall customer solution. These products use a magnetically biased, Hall effect integrated circuit (IC) to sense rotary movement of the actuator over a set operating range. Rotation of the actuator changes the magnet's position relative to the IC. The resulting flux density change is converted to a linear output. The IC, together with conditioning and protection circuitry, is sealed in an IP69K-qualified rugged package for durability in most harsh environments. Eight operating ranges from 50 to 360° are tolerant to over-travel and allow use in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 to 30 VDC. Honeywell's industry leading capabilities in research and development provide the customer with known quality and support.
