TURCK
#BI10U-Q14-AN6X2

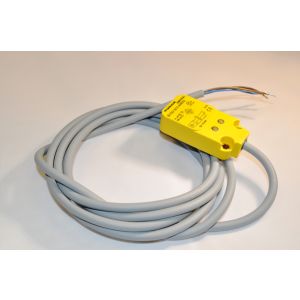

Uprox Sensor, Inductive Proximity; Rectangular; 3 Wire; 10-30V DC
SKU
#
78071698596
Manufacturer Series:
Q14
Specifications
Type:
Inductive Proximity, General Purpose
Construction Style:
Rectangular
Sensing Range:
10mm
Voltage:
10-30V DC
Wires - Voltage Type:
3-Wire DC
Output Mode:
NO
Shielding:
Shielded
Output Type:
NPN
Connection Type:
Cable
Connection Size:
2m (6.5 ft.)
Nominal Dimensions:
2.04x1.18x0.55 in. (52x30x14mm)
Material:
PBT
Enclosure Rating IEC:
IEC IP67
Switching Frequency:
0.25 KHz
Load Current - max:
200 mA
Temperature Rating:
-13° to +158°F (-25° to +70°C)
