MOLEX
#1202530130

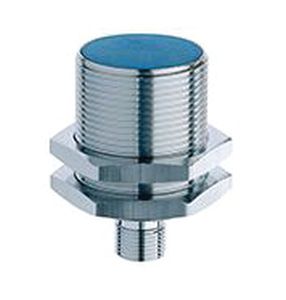

Inductive Sensor, 22mm, ≤ 200Hz, 30 VDC, NO (PNP), IP67
SKU
#
19113006300
Manufacturer Series:
120253
Specifications
Type:
Inductive Sensor
Sensing Range:
22mm
Voltage:
30V DC
Shielding:
Quasi-Embeddable
Output Type:
NO (PNP)
Connection Type:
4 Pin Connector
Connection Size:
M12
Nominal Dimensions:
L: 48.5mm
Material - Body:
Chrome Plated Brass
Material - Face:
PBTP
Enclosure Rating IEC:
IP67
Switching Frequency:
≤ 200Hz
Load Current - max:
200 mA
Temperature Rating - min:
-25°C
Temperature Rating - max:
70°C
