MOLEX
#1202530675

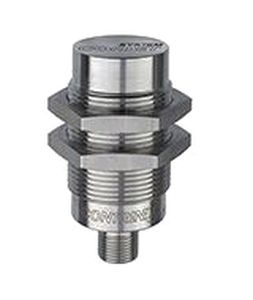

Inductive Sensor, 10mm, ≤ 15Hz, 30 VDC, Embeddable
SKU
#
19113006615
Manufacturer Series:
120253
Specifications
Type:
Inductive Sensor
Sensing Range:
10mm
Voltage:
30V DC
Shielding:
Embeddable
Output Type:
NC (PNP)
Connection Type:
4 Pin Connector
Connection Size:
M12
Nominal Dimensions:
L: 63.5mm
Material - Body:
Stainless Steel
Material - Face:
Stainless Steel
Enclosure Rating IEC:
IP68, IP69K
Switching Frequency:
≤ 15Hz
Load Current - max:
200 mA
Temperature Rating - min:
-25°C
Temperature Rating - max:
85°C
