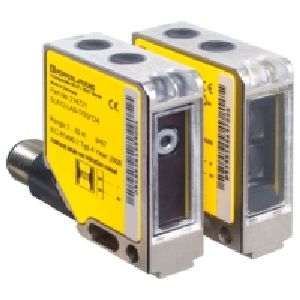

PEPPERL+FUCHS
#SLA12-R/124
Photoelectric Beam Receiver Miniature Rectangular
SKU
#
78884813518
Manufacturer Series:
SB4 Series
Specifications
Sensor Type:
Photoelectric Beam Receiver
Construction Style:
Rectangular
Sensing Range - metric:
10m
Sensing Range - standard:
32.80ft
Connection Type:
Connector, 5-Pin
Connection Size:
M12x1
Source Model:
SLA12/124
Sensing Position:
Side
Enclosure Rating IEC:
IEC IP67
Material:
Die-cast Zinc
Temperature Rating:
-20 to 60 Deg C(-4 to 140 Deg F)
Description
Photoelectric Sensors (Thru-Beam, Block Style Receiver): Sensor Type - Photoelectric Beam Receiver; Sensing Range - metric - 10m; Sensing Range - standard - 32.80ft; Connection Type - Connector, 5-pin; Connection Size - M12x1; Source Model - SLA12/124; Construction Style - Miniature Rectangular; Sensing Position - Side; Enclosure Rating IEC - IEC IP67; Material - Die cast Zinc; Temperature Rating - -20 to 60 Deg C(-4 to 140 Deg F); Additional Information - Optical Face: Plastic Pane; Manufacturer Series - SB4 Series
Additional Info: Optical Face: Plastic Pane
