OMRON
#E3S-AT91

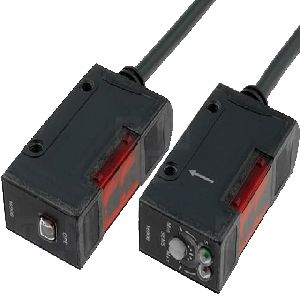

Photoelectric Thru-Beam Sensor Pair 10-30V DC
SKU
#
40312366857
Manufacturer Series:
E3S-A
Specifications
Sensor Type:
Photoelectric Thru-Beam Sensor Pair
Construction Style:
Rectangular
Sensing Range - standard:
7.00ft
Voltage:
10-30V DC
Output Mode:
Light/Dark Operate
Output Configuration:
NPN/PNP
Sensing Position:
Side
Response Time:
0.5ms
Enclosure Rating NEMA:
NEMA 4X
Enclosure Rating IEC:
IEC IP67
Material:
PBT
Temperature Rating:
-25 to 55 Degree C (-13 to 131 Degree F)
Beam Type:
Visible Red
Indication Display:
LED Output and Status Indicators
Description
Photoelectric Sensors (Thru-Beam, Block Style): Type - Photoelectric Thru-Beam Sensor Pair; Voltage - 10-30V DC; Output Mode - Light/Dark Operate; Output Configuration - NPN/PNP; Construction Style - Rectangular, Threaded; Beam Type - Visible Red; Sensing Range - standard - 7.00ft; Material - PBT; Response Time - 0.5ms; Indication Display - LED Output and Status Indicators; Enclosure Rating NEMA - NEMA 4X; Enclosure Rating IEC - IEC IP67; Sensing Position - Side; Temperature Rating - -25 to 55 deg C (-13 to 131 deg F); Manufacturer Series - E3S-A
