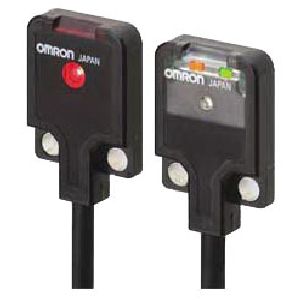

OMRON
#E3T-FT11
Photoelectric Sensor, 500.0 mm Sensing, 12-24V DC, Visible Red Beam, NPN, Light Operate
SKU
#
40312366509
Manufacturer Series:
E3T Series
Specifications
Sensor Type:
Photoelectric Thru-Beam Sensor
Construction Style:
Rectangular
Sensing Range - standard:
500.0 mm 20.00 in
Voltage:
12-24V DC
Output Mode:
Light Operate
Output Configuration:
NPN
Connection Type:
Cable
Connection Size:
5m (16.4 ft.)
Sensing Position:
Flat
Response Time:
1.0 ms
Enclosure Rating IEC:
IEC IP67
Material:
PBT
Temperature Rating:
-25 to 55 Degree C (-13 to 131 Degree F)
Beam Type:
Visible Red
Indication Display:
LED Output Indicator
Description
Photoelectric Sensors (Thru-Beam, Block Style): Type - Photoelectric Thru-Beam Sensor; Voltage - 12-24V DC; Output Mode - Light Operate; Output Configuration - NPN; Connection Type - Cable; Connection Size - 5m (16.4ft); Construction Style - Rectangular; Beam Type - Visible Red; Sensing Range - standard - 500.0 mm (20.00 in); Material - PBT; Response Time - 1.0 ms; Indication Display - LED Output Indicator; Enclosure Rating IEC - IEC IP67; Sensing Position - Flat; Temperature Rating - -25 to 55 deg C (-13 to 131 deg F); Manufacturer Series - E3T Series
