EATON
#11155RA14

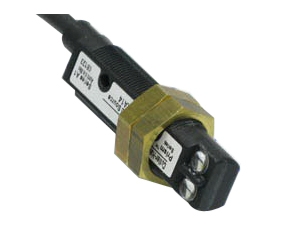

Photoelectric Thru-Beam Source Tubular w/Flat Sides, Threaded Visible 20-132VAC/15-30VDC
SKU
#
78211305653
Manufacturer Series:
Prism Series
Specifications
Country of Origin:
Mexico - Subject to change
Sensor Type:
Photoelectric Thru-Beam Source
Construction Style:
Barrel/Tubular
Sensing Range - metric:
6m
Sensing Range - standard:
20ft
Voltage:
20-132V AC / 15-30V DC
Connection Type:
Cable
Connection Size:
1.8m (6 ft.)
Sensing Position:
Right Angle
Enclosure Rating NEMA:
NEMA 1, 2, 3, 4, 4X, 6, 12, 13
Material:
Polyurethane
Temperature Rating:
-25 to 55 Degree C (-13 to 131 Degree F)
Beam Configuration:
20 in. (0.5m) Dia at 10 ft (3m)
Beam Type:
Visible
Receiver Model:
12155RL10
Diameter:
18mm
Description
Additional Info: Frequency: 50/60Hz, Lens: Polycarbonate
