EATON
#12100RSW6513

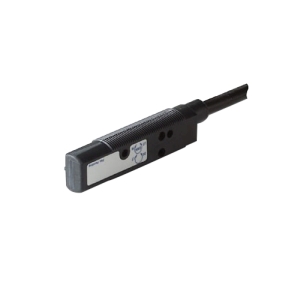

Comet Photoelectric Thru-Beam Receiver Tubular, Threaded Light/Dark Operate 20-264VAC/15-30VDC
SKU
#
78211303800
Specifications
Sensor Type:
Photoelectric Thru-Beam Receiver
Construction Style:
Barrel/Tubular
Sensing Range - metric:
6m
Sensing Range - standard:
20ft
Voltage:
20-264V AC / 15-30V DC
Output Mode:
Light/Dark Operate
Output Configuration:
NPN
Connection Type:
Cable
Connection Size:
1.8m (6 ft.)
Source Model:
11100R6513
Sensing Position:
End
Response Time:
10ms
Enclosure Rating NEMA:
NEMA 1, 3, 4, 4X, 6, 12, 13
Enclosure Rating IEC:
IEC IP69K
Material:
Polyurethane
Temperature Rating:
-20 to 70 Degree C (-4 to 158 Degree F)
Diameter:
18mm
Description
Photoelectric Sensors (Thru-Beam, Tubular Style Receiver): Sensor Type - Photoelectric Thru-Beam Receiver; Sensing Range - metric - 6m; Sensing Range - standard - 20ft; Voltage - 20-264VAC/15-30VDC; Output Mode - Light/Dark Operate; Output Configuration - NPN; Connection Type - Cable; Connection Size - 1.8m (6.0 ft); Source Model - 11100R6513; Diameter - 18 mm; Construction Style - Tubular, Threaded; Sensing Position - End; Material - Polyurethane; Response Time - 10ms; Enclosure Rating NEMA - NEMA 1,3,4,4X,6,12,13; Enclosure Rating IEC - IEC IP69K; Temperature Rating - -20 to 70degC (-4 to 158degF); Manufacturer Series - Comet Series
