OMRON
#E3ASF1500IMN2M

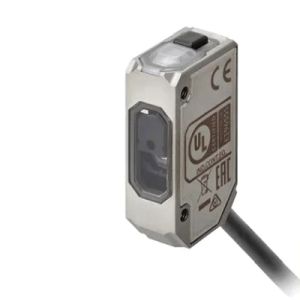

Photoelectric Sensor, 50 to 1500mm Sensing, 10 to 30 VDC
SKU
#
40312394434
Manufacturer Series:
E3AS-F
Specifications
Type:
Photoelectric Retroreflective Sensor
Sensing Range:
50 to 1500mm
Voltage:
10-30V DC
Output Type:
NPN
Connection Type:
Pre-Wired Cable
Connection Size:
2m
Beam Type:
Infrared
Response Time:
150 ms Max Operate or Reset
Enclosure Rating IEC:
IEC IP67, IP69K, IP67G
Temperature Rating - min:
-40°C
Temperature Rating - max:
70°C
Shielding:
Shielded
Nominal Dimensions:
LxWxH: 39.3 x 23.4 x 11.4 in.
Load Current - max:
30 mA
Diameter:
95mm Spot
Housing Material:
316L Stainless Steel
