OMRON
#E3K-D2K4

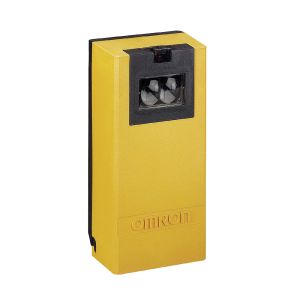

Photoelectric Sensor, 2 m Sensing, DPDT, Plastic
SKU
#
40312367187
Specifications
Type:
Photoelectric Diffuse Reflective Sensor
Construction Style:
Rectangular
Sensing Range:
2m
Voltage:
42-240V AC, 24-240V DC
Output Mode:
Light/Dark Operate
Output Configuration:
DPDT
Connection Type:
Screw Terminals
Connection Size:
3/4-14 NPT
Response Time:
30 ms
Material:
Plastic
Enclosure Rating NEMA:
NEMA 1, 4, 4X, 12, 13
Enclosure Rating IEC:
IEC IP67
Temperature Rating:
-25 to 55deg C (-13 to 131deg F)
Nominal Dimensions:
7.28x3.50x2.52 in. (184.91x88.90x64.01mm)
Load Current - max:
10 A
Description
Sensor; Photoelectric; Diffuse Reflective; 2 m Sensing; 42-240VAC, 24-240VDC; DPDT Output; Light/Dark Operate; 3/4-14 NPT Screw Terminals Connection; Rectangular; 30 ms Response; Plastic; NEMA 1, 4, 4X, 12, 13; IEC IP67; 10 A Load max
