EATON
#E51ALP2

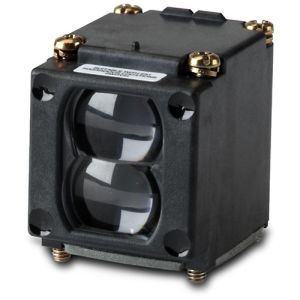

Photoelectric Diffuse Reflex, 8 in (200mm) Range, Screw Terminals 1/2 in. NPT
SKU
#
78211312992
Manufacturer Series:
E51 Modular
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Photoelectric Diffuse Reflex
Construction Style:
Limit Switch
Sensing Range:
8 in. (200mm)
Output Mode:
NO or NC
Connection Type:
Screw Terminals
Connection Size:
1/2 in. NPT
Response Time:
Standard
Enclosure Rating NEMA:
NEMA 3, 3S, 4, 4X, 6, 6P, 13
Wires - Voltage Type:
2 Wire, 20-264V AC/DC
Description
Photoelectric Sensors (Reflex-Reflective, Limit Switch Style): Sensor Type - Photoelectric Diffuse Reflex; Sensing Range - 8 in (200mm); Wires - Voltage Type - 2 Wire, 20-264V AC/DC; Connection Type - Screw Terminals; Connection Size - 1/2"NPT; Output Mode - N.O. or N.C.; Construction Style - Limit Switch Style, Modular; Enclosure Rating NEMA - NEMA 3,3S,4,4X,6,6P,13; Response Time - Standard; Manufacturer Series - E51 Modular
