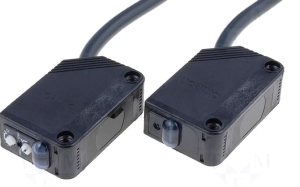

OMRON
#E3Z-T81
Photoelectric Sensor with Amplifier, 49.21ft, 12-24V DC, Light/Dark Selectable, PNP, 2m
SKU
#
40312365217
Manufacturer Series:
E3Z Series
Specifications
Type:
Photoelectric Thru-Beam Sensor
Construction Style:
Rectangular
Sensing Range - metric:
15m
Sensing Range - standard:
49.21 ft.
Voltage:
12-24V DC
Output Mode:
Light/Dark Operate
Output Configuration:
PNP
Connection Type:
Cable
Connection Size:
2m (6.5 ft.)
Sensing Position:
Side
Beam Type:
Infrared
Response Time:
1ms
Sensor Material:
PBT
Enclosure Rating IEC:
IEC IP67
Temperature Rating:
-25 to 55°C (-13 to 131°F)
Description
Photoelectric Sensors (Fiber Optic, Block Style): Type - Photoelectric Thru-Beam Sensor; Sensing Range - metric - 15m; Sensing Range - standard - 49.21ft; Voltage - 12-24VDC; Output Mode - Light/Dark Operate; Output Configuration - PNP; Connection Type - Cable; Connection Size - 2m (6.5ft); Construction Style - Compact, Rectangular; Sensing Position - Side; Beam Type - Infrared; Response Time - 1ms; Sensor Material - PBT; Enclosure Rating IEC - IEC IP67; Temperature Rating - -25 to 55degC (-13 to 131 deg F); Additional Information - Lens Material: Polyarylate; Manufacturer Series - E3Z Series
Additional Info: Lens Material: Polyarylate
