OMRON
#E3Z-LS86

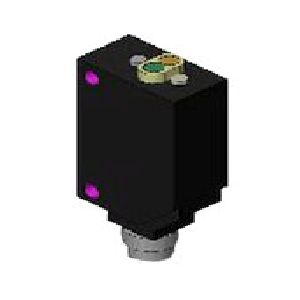

Sensor, Photoelectric Diffuse Reflective; M8x1 Connection
SKU
#
40312365591
Manufacturer Series:
E3Z
Specifications
Type:
Photoelectric Diffuse Reflective
Construction Style:
Rectangular
Sensing Range:
1.57 to 7.87 in. (40 to 200mm)
Voltage:
12-24V DC
Output Mode:
Light/Dark Operate
Output Type:
PNP
Connection Type:
Connector, 4-Pin
Connection Size:
M8x1
Sensing Position:
Adjustable
Material:
PBT
Response Time:
1ms
Beam Type:
Visible Red
Enclosure Rating IEC:
IEC IP67
Load Current - max:
100 mA
Temperature Rating:
-13° to +131°F (-25° to +55°C)
Nominal Dimensions:
0.78x0.42x1.63 in. (20x11x41mm)
Description
Photoelectric Sensors (Background Rejection, Block Style): Type - Photoelectric Diffuse Reflective; Sensing Range - 1.57-7.87 in. (40-200mm); Voltage Range - 12-24VDC; Output Mode - Light/Dark Operate; Output Configuration - PNP; Connection Type - Connector, 4-Pin; Connection Size - M8x1; Construction Style - Rectangular; Sensing Position - Adjustable; Response Time - 1ms; Beam Type - Visible Red; Material - PBT; Enclosure Rating IEC - IEC IP67; Temperature Rating - -25 to 55degC (-13 to 131degF); Load Current - max - 100 mA; Nominal Dimensions - 0.78x0.42x1.63 in. (20x11x41mm)
Additional Info: Lens Material: Denatured Polyarylate, LED Indicator
