OMRON
#E3S-CL1

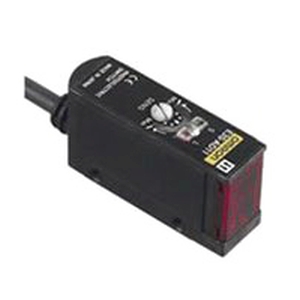

Sensor, Photoelectric; Cable; 1 ms
SKU
#
40312366823
Specifications
Type:
Photoelectric Sensor
Sensing Range:
5 to 200mm
Voltage:
10-30V DC
Output Mode:
Light/Dark Operate
Output Type:
PNP/NPN
Connection Type:
Cable
Connection Size:
5m (16.4 ft.)
Optimum Range:
40 to 200mm
Material:
Die-cast Zinc, Polyethyl Sulfon Cover
Response Time:
1 ms
Beam Type:
Visible Red
Enclosure Rating IEC:
IEC IP67
Load Current - max:
100 mA
Temperature Rating:
-25 to 55°C (-13 to 130°F)
Nominal Dimensions:
1.46x1.67x0.60 in. (37.2x42.6x15.4mm)
Description
Photoelectric Sensors (Background Rejection, Block Style): Type - Photoelectric Sensor; Sensing Range - 5 to 200 mm; Voltage Range - 10-30V DC; Output Mode - Light/Dark Operate; Output Configuration - PNP/NPN; Connection Type - Cable; Connection Size - 5m (16.4 ft); Optimum Range - 40 to 200mm; Response Time - 1 ms; Beam Type - Visible Red; Material - Die Cast Zinc, Polyethyl Sulfon Cover; Enclosure Rating IEC - IEC IP67; Temperature Rating - -25 to 55 deg C (-13 to 130 deg F); Load Current - max - 100 mA; Nominal Dimensions - 1.46x1.67x0.60 in. (37.2x42.6x15.4mm)
Additional Info: Methacrylate Resin Lens, Pre-Wired, Sensing Method: Distance-Setting
