OMRON

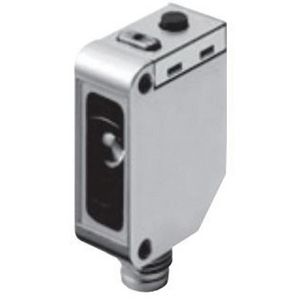

#E3ZM-V86
Photoelectric Sensor, Square, 10 to 14mm Sensing, M8
SKU
#
40312365395
Manufacturer Series:
E3ZM-V
Specifications
Type:
Photoelectric Diffuse Reflective Sensor
Construction Style:
Square
Sensing Range:
10 to 14mm
Voltage:
10-30V DC
Output Mode:
Light/Dark ON
Output Type:
PNP
Connection Type:
Connector
Connection Size:
M8
Sensing Position:
Front
Material:
SUS316 Stainless Steel
Response Time:
50 µs
Beam Type:
White LED
Beam Configuration:
450 to 700nm
Enclosure Rating IEC:
IP67, IP69K
Load Current - max:
100 mA
Temperature Rating:
-40° to +60°C
Material - Face:
Methacrylate Resin
Nominal Dimensions:
LxWxH: 10.8 x 22.5 x 31mm
