LITTELFUSE
#ASTUA3

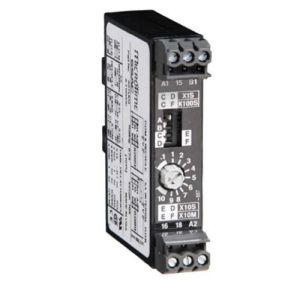

Time Delay Relay, 0.1 sec to 100 Min, 1 Form A (SPST-NO)
SKU
#
07945899154
Manufacturer Series:
ASTU
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Time Delay Relay
Mounting:
DIN Rail/Surface
Terminals:
Plug-In
Operation:
Multi-Function
Contacts:
1 Form A (SPST-NO)
Dimensions:
HxWxD: 76.2 x 17.52 x 61.2mm
Voltage:
24 to 240V AC
Range Min-Max:
0.1 sec to 100 Min
Timing Adjustment:
Knobs with Dial
Description
The ASTUseries of 17.5 mm, knob adjustable, universal solid state timers offer multiple functions, voltages, and time delay ranges. Choose one of 5 functions and 4 time delay ranges via 4 selection switches located on face of the unit. Adjustment through the time range is accomplished by an onboard knob.
